Understanding the Pultec Equalizer

Pultec Equalizer Family: Vintage Masterpieces for Modern Music Production

Pultec Equalizer EPQ-1A
Pultec EQP-1A by Pulse Techniques

The Pultec Equalizer family comprises some of the most revered pieces of audio equipment in the world of music production.

These vintage EQ units, originally produced by Pulse Techniques, have become staples in studios around the globe for their unique sound-shaping capabilities.

In this article, we’ll dive into the workings of the Pultec Equalizers, including the iconic EQP-1A, the midrange-focused MEQ-5, and the high and low filter HLF-3C.

We’ll also explore why they remain go-to tools for producers and engineers alike.

What is the Pultec Equalizer?

The Pultec EQP-1A, the most iconic model from the Pultec line, was first introduced in the early 1950s.

It quickly gained a reputation for its ability to enhance audio tracks with a warm, musical quality that was hard to replicate with other gear.

The EQP-1A is a passive tube equalizer, meaning it uses passive components (inductors, capacitors, and resistors) to shape the frequency response, followed by a tube amplifier to restore signal gain.

How Does the Pultec Equalizer EQP-1A Work?

The magic of the Pultec EQP-1A lies in its simple yet effective design. The unit features two main sections: the low-frequency section and the high-frequency section.

Low-Frequency Section:

  • Boost and Attenuation: The Pultec EQP-1A has separate knobs for boosting and attenuating low frequencies, typically set at 20, 30, 60, or 100 Hz. This unique design allows for the famous “Pultec trick,” where you can simultaneously boost and cut the same frequency, resulting in a resonant, punchy low end without muddying the mix.

High-Frequency Section:

  • Peak Boost: The high-frequency boost control offers selectable frequencies (3, 4, 5, 8, 10, 12, and 16 kHz) with adjustable bandwidth (Q). This allows for precise control over the high-end shimmer and presence.
  • Shelving Attenuation: The high-frequency attenuation operates at fixed frequencies (5, 10, and 20 kHz) and helps tame any harshness or sibilance in the upper frequencies.

The Pultec Equalizer MEQ-5

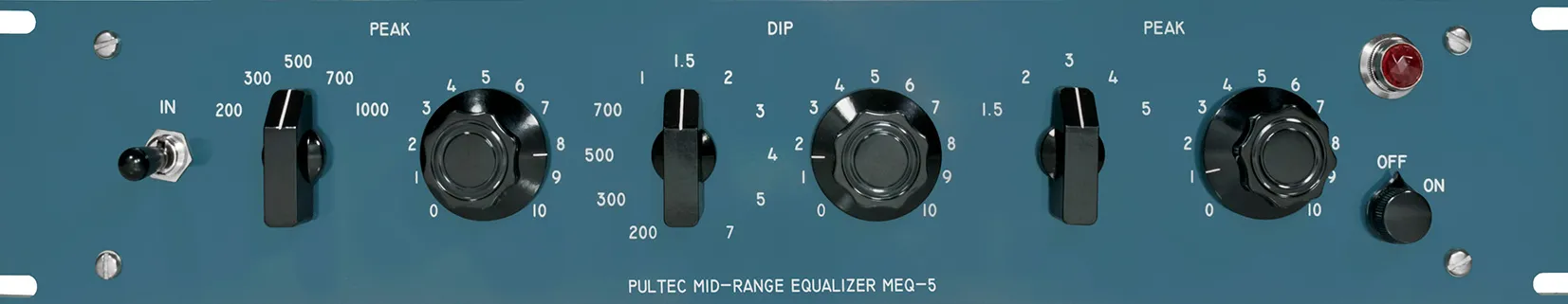

Pultec MEQ-5
Pultec MEQ-5 by Pulse Techniques

The Pultec MEQ-5 is another classic from the Pultec family, specifically designed to address the midrange frequencies. It features three bands of midrange equalization:

Midrange Section:

  • Low-Mid Boost: Boosts midrange frequencies at 200, 300, 500, 700, and 1000 Hz. This control is excellent for adding body and warmth to vocals and instruments.
  • Midrange Dip: Attenuates midrange frequencies at 200, 300, 500, 700, 1000, 1500, 3000, and 5000 Hz. This is particularly useful for removing boxiness or honky tones in recordings.
  • High-Mid Boost: Boosts midrange frequencies at 1.5, 2, 3, 4, and 5 kHz. This can add presence and clarity to lead instruments and vocals.

The Pultec Equalizer HLF-3C: High and Low Filters

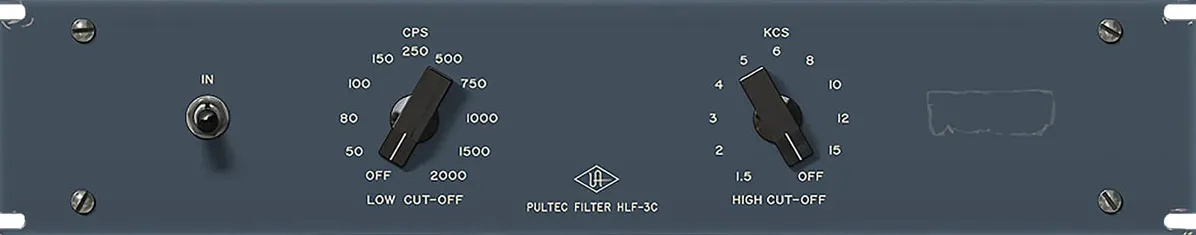

Pultec HLF-3C
Pultec HLF-3C plugin by Universal Audio

The Pultec HLF-3C is a dedicated high and low pass filter unit. It offers a simple yet powerful way to control the extreme ends of the frequency spectrum:

High and Low Filters:

  • High-Pass Filter: Attenuates frequencies below 50, 100, 200, 300, and 400 Hz. This is useful for removing rumble and low-frequency noise from recordings.
  • Low-Pass Filter: Attenuates frequencies above 3, 4, 5, 8, 10, and 12 kHz. This helps to tame high-frequency hiss and harshness.

Why Producers Love the Pultec Equalizers

  1. Warmth and Musicality: The Pultec EQs are renowned for adding a warm, musical character to any audio source. The tube stage imparts a pleasing harmonic distortion that can make digital recordings sound more analog and vibrant.
  2. Versatility: Despite their vintage design, Pultec EQs are incredibly versatile. They are used on a wide range of instruments and vocals, from bass and drums to guitars and synths. Their ability to enhance and shape frequencies without sounding harsh or artificial makes them favorites for many producers.
  3. Ease of Use: The straightforward controls make it easy to dial in the desired sound quickly. The Pultec EQs’ intuitive design ensures that even novice users can achieve professional-sounding results with minimal effort.

Tips and Curiosities About the Pultec Equalizers

  1. The Pultec Trick: One of the most famous techniques associated with the Pultec EQP-1A is the simultaneous boost and cut at the same low frequency. This creates a distinctive low-end punch that is hard to achieve with other EQs. For example, try boosting and attenuating at 60 Hz on a kick drum or bass guitar to add depth and definition.
  2. Subtractive EQ for Clarity: Use the high-frequency attenuation control on the EQP-1A or the midrange dip on the MEQ-5 to reduce harshness and sibilance in vocals and cymbals. This can help create a smoother, more balanced mix.
  3. Mix Bus Magic: Many engineers like to use the Pultec EQP-1A on the mix bus to add a final touch of polish to their mixes. A gentle boost in the high frequencies can add air and sparkle, while a low-end boost can provide a solid foundation.
  4. High and Low Filtering: The HLF-3C can be used to clean up the extreme ends of the frequency spectrum. Apply the high-pass filter to remove unnecessary low-end rumble and the low-pass filter to tame excessive high-end hiss.
  5. Replicas and Plugins: Due to their legendary status, many companies have created replicas and plugins that emulate the Pultec EQs’ sound and behavior. While these can be excellent, nothing quite matches the experience of using an original Pultec unit.

Exploring VST Emulations and Hardware Clones

In today’s digital age, the timeless appeal of the Pultec Equalizers has inspired a plethora of emulations and hardware clones.

These versions capture the essence of the originals, making the Pultec sound accessible to all producers.

VST Emulations:
Several software companies have created respected VST emulations of Pultec EQs, bringing the vintage vibe into the digital realm:

  1. UAD (Universal Audio): Known for their meticulous attention to detail, UAD’s Pultec emulations are celebrated for their authenticity and rich sound.
  2. Waves: Waves offers a range of Pultec-inspired plugins that are highly popular due to their quality and affordability.
  3. Softube: Softube’s emulations are praised for their warmth and musicality, closely replicating the original hardware’s character.
  4. Apogee: Apogee’s Pultec emulations provide excellent sonic fidelity, making them a favorite among professional mixers and producers.
  5. Acustica Audio: Acustica Audio offers highly accurate emulations that capture the nuanced behavior of the original Pultec units.
  6. IK Multimedia: IK Multimedia’s Pultec emulations are known for their high-quality sound and ease of use.

Hardware Clones:
For those who prefer the tactile experience of analog gear, several manufacturers produce hardware clones of the Pultec EQs. These units strive to match the sound and feel of the vintage originals:

  1. Pulse Techniques: Pulse Techniques, the original manufacturer of Pultec EQs, continues to produce these classic units with the same quality and attention to detail as the vintage models.
  2. Warm Audio: Warm Audio’s versions are known for their affordability and close approximation to the original Pultec sound.
  3. Klark Teknik: Offering high-quality builds at competitive prices, Klark Teknik’s Pultec clones are a popular choice in many studios.
  4. Manley: Manley Labs produces high-end, premium hardware that captures the essence of the Pultec EQs with modern reliability and performance.

Free Pultec Emulations: High-Quality Options Without the Cost

If you want the classic Pultec sound without spending on premium plugins, high-quality free VST emulations offer a taste of this iconic equalizer’s warmth.

Here are some notable free Pultec-inspired plugins that can enhance your mixes while keeping your budget intact:

1. Analog Obsession Rare Bundle: The Rare Bundle by Analog Obsession includes several vintage-inspired plugins, with the Rare EQ emulating the classic Pultec EQ characteristics.

It provides the distinctive Pultec curves and musicality, allowing you to add warmth and clarity to your tracks with ease.

2. WARMY EP1A by Kiive Audio: The WARMY EP1A is a free emulation of the Pultec EQP-1A, known for its smooth and musical sound.

Kiive Audio’s plugin faithfully replicates the tone-shaping capabilities of the original hardware, providing easy-to-use controls that help you achieve that classic Pultec magic.

3. PTEQ-X by Ignite Amps: PTEQ-X offers a solid emulation of the Pultec EQP-1A, featuring the same intuitive interface and sound-shaping abilities.

It captures the essence of the vintage equalizer, including the signature boost and attenuation features that made the original so popular among engineers.

4. Coffee The Pun by Acustica Audio: Coffee The Pun is a free equalizer plugin by Acustica Audio that aims to emulate the vintage Pultec EQ sound.

While it offers fewer controls compared to its paid counterparts, it still provides a taste of the classic Pultec tone with a user-friendly interface.

These free Pultec emulations provide a great starting point for those interested in adding vintage character to their mixes.

Each plugin provides unique features and tonal qualities, making them valuable for achieving the Pultec sound without cost.

Experimenting with these options can help you find the right fit for your productions while expanding your audio toolkit.

Final conclusions

Whether you opt for a VST plugin or a hardware clone, the timeless Pultec Equalizer sound is within reach. These emulations and clones capture the magic of the original Pultec units, adding vintage warmth and character to modern music productions.

Exploring these options helps you find the perfect tool to enhance your mixes and elevate your sound.
